LM215WF3-SLC1 normalmente negro LG 21,5 pulgadas con 475,2 el × 267,3 (H×V) para el monitor de escritorio |
Datos del producto:
|
Resolución: | 1024×768 | Tamaño del panel: | 15,0 pulgadas |
---|---|---|---|
Tipo de panel: | Uno-Si TFT LCD | esquema: | 326.5×253.5 milímetro |
frecuencia: | 60hz | De tensión de entrada: | 3.3V (tipo.) |
Alta luz: | industrial touch screen display,industrial lcd panel |

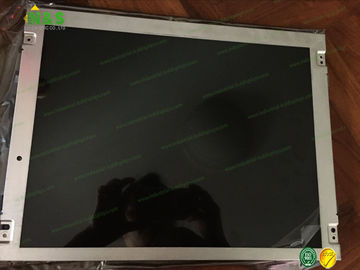

15.0 inch TMS150XG1-12TB AVIC 1024×768 Outline 326.5×253.5 mm Contrast Ratio 600:1 (Typ.) Frequency 60Hz
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Feedback:
(1) Your early confirmation will be highly appreciated after receiving the item.
(2) If you are satisfied with our item, pls contact to us also for other items, actually, we are not only own professional sourcing lines for AUO, LG, Samsung, Tianma, KOE, NEC, Hitachi, Optrex and more.
Below are our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LQ079L1SX06 | SHARP | 7.9" | 1536×2048 |
LQ079L1SX04 | SHARP | 7.9" | 1536×2048 |
LQ133M1JW08 | SHARP | 13.3" | 1920×1080 |
LQ156D1JX02 | SHARP | 15.6" | 3840×2160 |
LQ156Z1JW01 | SHARP | 15.6" | 3200×1800 |
LQ133T1JW14B | SHARP | 13.3" | 2560×1440 |
LQ047K3SX04 | SHARP | 4.7" | 720×1280 |
LS024Q8UC92 | SHARP | 2.4" | 240×320 |
LK235D3HA0S | SHARP | 23.6" | 1920×1080 |
LS055D1SX04 | SHARP | 5.5" | 2160×3840 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
TMS150XG1-12TB Basic Information
Panel Model | TMS150XG1-12TB |
Panel Brand | AVIC |
Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
Panel Type | a-Si TFT-LCD |
Operating Temperature | -10 ~ 55 °C |
Storage Temperature | -20 ~ 60 °C |
Remarks | PSWG Compatible |
TMS150XG1-12TB Mechanical Features
Dot Resolution | 1024(RGB)×768 (XGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 85 PPI |
Aspect Ratio | 4:3 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.099×0.297 mm (H×V) |
Pixel Pitch | 0.297×0.297 mm (H×V) |
Weight | 1.00Kgs (Typ.) |
Active Area | 304.128×228.096 mm (H×V) |
Bezel Area | 307.4×231.3 mm (H×V) |
Outline Dimension | 326.5×253.5 mm (H×V) |
Outline Depth | 11.13±0.5 mm |
Holes & Brackets | Side mounting holes (4-M3) |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
TMS150XG1-12TB Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
Display Color | 16.7M (6-bit + Hi-FRC) |
Color Gamut | 60% NTSC (CIE1931) |
Response Time | 2/6 (Typ.)(Tr/Td) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.20/1.30 (Typ./Max.)(9 points) |
Sunlight Readable | N |
