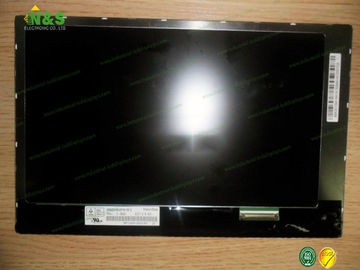

HSD101PWW1-B00 10.1 inch HannStar Normally Black Outline 229.46×149.2×5 mm Input Voltage 3.3V (Typ.)

HSD101PWW1-B00 10.1 inch HannStar Normally Black Outline 229.46×149.2×5 mm Input Voltage 3.3V (Typ.)
HSD101PWW1-B00 10.1 inch HannStar Normally Black Outline 229.46×149.2×5 mm Input Voltage 3.3V (Typ.)

Ampliación de imagen :  HSD101PWW1-B00 10.1 inch HannStar Normally Black Outline 229.46×149.2×5 mm Input Voltage 3.3V (Typ.)

Datos del producto:
Lugar de origen: Corea
Nombre de la marca: HannStar
Certificación: ISO9001
Número de modelo: HSD101PWW1-B00
Pago y Envío Términos:
Cantidad de orden mínima: 1 pedazo
Detalles de empaquetado: Bolso antiestático, bolso de burbuja, caja de la espuma y caja del cartón.
Tiempo de entrega: 1-3 días laborables
Condiciones de pago: T / T, Western Union, MoneyGram
Capacidad de la fuente: 500pcs/day

HSD101PWW1-B00 10.1 inch HannStar Normally Black Outline 229.46×149.2×5 mm Input Voltage 3.3V (Typ.)

descripción
Tamaño del panel: 10.1 pulgadas Resolución: 1280×800
Relación de contraste: 800:1 (tipo.) frecuencia: 60hz
Alta luz:

industrial touch screen display

,

industrial lcd screen

HSD101PWW1-B00 10.1 inch HannStar Normally Black Outline 229.46×149.2×5 mm Input Voltage 3.3V (Typ.)



HSD101PWW1-B00 Basic Information

Panel Model HSD101PWW1-B00
Panel Brand HannStar
Descrition a-Si TFT-LCD ,10.1 inch, 1280×800
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



HSD101PWW1-B00 Mechanical Features

Dot Resolution 1280(RGB)×800 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 149 PPI
Aspect Ratio 16:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0565×0.1695 mm (H×V)
Pixel Pitch 0.1695×0.1695 mm (H×V)
Weight 170g (Max.)
Surface Glare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.)
Active Area 216.96×135.6 mm (H×V)
Bezel Area 220.76×139.00 mm (H×V)
Outline Dimension 229.46×149.2 mm (H×V)
Outline Depth 3.0/5.0 (Typ./Max.) mm
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without



HSD101PWW1-B00 Optical Features

Display Mode HS-IPS, Normally Black, Transmissive
Brightness 350 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 25 (Typ.)(Tr+Td)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.50 (Max.)(5/13 points)
Sunlight Readable N


Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

Here comes our other LCD panels stock for your easy reference:



Panel Model Brand Size Resolution
NL204153BC21-09 NLT 21.3" 2048×1536
NL128102BC31-02 NLT 20.1" 1280×1024
NL8060BC26-28D NLT 10.4" 800×600
NL280210AM15-04A NLT 21.3" 2800×2100
NL2432HC22-50K NLT 3.5" 240×320
NL160120BC27-19E NLT 21.3" 1600×1200
NL204153BM21-05 NLT 21.3" 2048×1536
NL204153BM21-04A NLT 21.3" 2048×1536
NL204153BM21-04 NLT 21.3" 2048×1536
NL204153BM21-02 NLT 21.3" 2048×1536
NL6448BC33-29 NLT 10.4" 640×480
NL10276BC20-11 NLT 10.4" 1024×768
NL10276BC28-01 NLT 14.1" 1024×768



Pls contact to us for more stock information: salespm@nselectronic.com.hk
