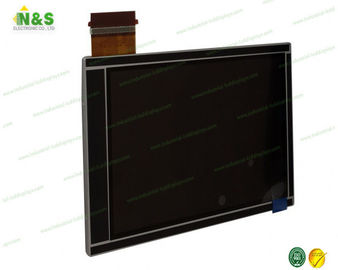

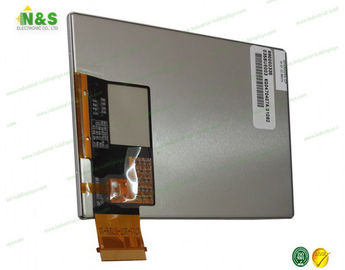

Normally White TD035SHED1 3.5 inch TPO LCD displays Active Area 53.28×71.04 mm Outline 64×85 mm new and original
TD035SHED1 Basic Information
| Panel Model |
TD035SHED1 |
| Panel Brand |
TPO |
| Descrition |
LTPS TFT-LCD ,3.5 inch, 480×640 |
| Panel Type |
LTPS TFT-LCD |
| Operating Temperature |
-10 ~ 60 °C |
| Storage Temperature |
-20 ~ 70 °C |
TD035SHED1 Mechanical Features
| Dot Resolution |
480(RGB)×640 (VGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
228 PPI |
| Aspect Ratio |
3:4 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.037×0.111 mm (H×V) |
| Pixel Pitch |
0.111×0.111 mm (H×V) |
| Weight |
TBD |
| Active Area |
53.28×71.04 mm (H×V) |
| Bezel Area |
56.4×74.4 mm (H×V) |
| Outline Dimension |
64×85 mm (H×V) |
| Outline Depth |
3.35 (Max.) mm |
| Holes & Brackets |
left side 2 in 1 FPC |
| Landscape or Portrait |
Portrait type |
| Touch Panel |
Without |
TD035SHED1 Optical Features
| Display Mode |
TN, Normally White, Transflective |
| Brightness |
170 cd/m² (Typ.) |
| Contrast Ratio |
8:1 (Typ.) (Reflective) |
| Display Color |
262K (6-bit) |
| Color Gamut |
37% NTSC (CIE1931) |
| Response Time |
35 (Typ.)(Tr+Td) |
| Viewing Angle |
80/80/80/70 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity |
Wx:0.310; Wy:0.330 |
| White Variation |
1.25/1.43 (Typ./max.)(9 points) |
| Reflectance Ratio |
3.0/5.0% (Min./Typ.) |
| Sunlight Readable |
Y |
Packaging & Delivery
Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.
Delivery Detail: 2-3 days after receipt of payment
Payment terms: We accept T/T, PayPal, Western Union and others.
We can do for You:
1. Quality Guarantee:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of hard disks to provide customers with effective advice.
We have been in hard disk business for more than 6 years and know the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
