LM215WF3-SLC1 normalmente negro LG 21,5 pulgadas con 475,2 el × 267,3 (H×V) para el monitor de escritorio |
Datos del producto:
|
Tipo de panel: | Uno-Si TFT LCD | Tamaño del panel: | 6,5 pulgadas |
---|---|---|---|
Resolución: | 640×480 | esquema: | 154×121 milímetro |
Colores de la exhibición: | 262K (6-bit) | frecuencia: | 60hz |
Alta luz: | industrial lcd screen,industrial lcd panel |

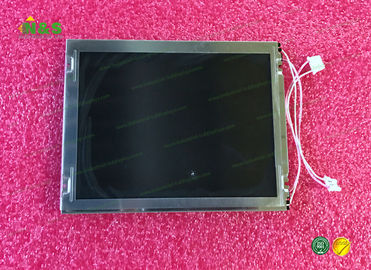

Normally White AA065VB07 6.5 inch 640×480 tft lcd module Surface Antiglare, Hard coating (3H) Frequency 60Hz
AA065VB07 Basic Information
Panel Model | AA065VB07 |
Panel Brand | Mitsubishi |
Descrition | a-Si TFT-LCD ,6.5 inch, 640×480 |
Panel Type | a-Si TFT-LCD |
Model Alias | T-51952D065J-FW-A-ADN |
Operating Temperature | -20 ~ 70 °C |
Storage Temperature | -20 ~ 80 °C |
Remarks | Mechanically Symmetric Design |
AA065VB07 Mechanical Features
Dot Resolution | 640(RGB)×480 (VGA) |
Pixel Configuration | RGB Vertical Stripe |
Pixel Density | 122 PPI |
Aspect Ratio | 4:3 (H:V) |
Form Factor | Flat Rectangle Display |
Dot Pitch | 0.069×0.207 mm (H×V) |
Pixel Pitch | 0.207×0.207 mm (H×V) |
Weight | 205g (Typ.) |
Surface | Antiglare, Hard coating (3H) |
Active Area | 132.48×99.36 mm (H×V) |
Bezel Area | 135.5×102.4 mm (H×V) |
Outline Dimension | 154×121 mm (H×V) |
Outline Depth | 11.0 (Typ.) mm |
Holes & Brackets | Face mounting holes (4-R1.25); Side mounting holes (4-M2) |
Landscape or Portrait | Landscape type |
Touch Panel | Without |
AA065VB07 Optical Features
Display Mode | TN, Normally White, Transmissive |
Brightness | 600 cd/m² (Typ.) |
Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
Display Color | 262K (6-bit) |
Response Time | 6/19 (Typ.)(Tr/Td) |
Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) |
Viewing Direction | 6 o'clock |
White color Chromaticity | Wx:0.313; Wy:0.329 |
White Variation | 1.30 (Max.)(5 points) |
Sunlight Readable | N |
Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.
2. Great quality and high purity
Good quality is one secret for our success.
3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
Here comes our other LCD panels stock for your easy reference:
Panel Model | Brand | Size | Resolution |
LH500WX9-SH01 | LG Display | 5.0" | 720×1280 |
P089DCZ-3A1 | Innolux | 8.9" | 800×1280 |
BS050HDE-N41-6Q00 | BOE | 5.0" | 720×1280 |
BV050HDE-N44 | BOE | 5.0" | 720×1280 |
A101STN01.2 | AUO | 10.1" | 1024×600 |
LH550WX1-SH03 | LG Display | 5.5" | 720×1280 |
HSD055FHW2-D00 | HannStar | 5.5" | 720×1280 |
HSD055BHW3-D00 | HannStar | 5.5" | 720×1280 |
H546TAN01.4 | AUO | 5.5" | 720×1280 |
LSC480AN02 | Samsung | 48" | 1366×768 |
