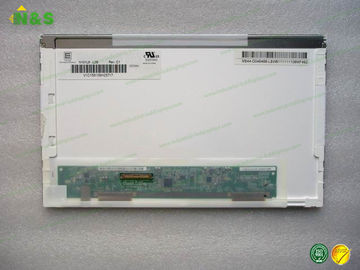

Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original

Certificación
China N&S ELECTRONIC CO., LIMITED certificaciones
China N&S ELECTRONIC CO., LIMITED certificaciones
Comentarios de cliente
Nos hemos vuelto por completo de las memorias excelentes, N&S somos una organización muy buena. Realmente experto para los LCDs.

—— ANDY

Quisiéramos elogiar el servicio que recibimos de esta compañía que organizó intachablemente nuestra línea de suministro del panel LCD.

—— M.H. Thatcher

Si planeo otra pedido del panel LCD no vacilaré entrarle en contacto con otra vez.

—— Alejandro

Estoy en línea para chatear ahora

Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original

Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original
Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original

Ampliación de imagen :  Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original

Datos del producto:
Lugar de origen: Corea
Nombre de la marca: CMO
Certificación: ISO9001
Número de modelo: N101L6-L0B
Pago y Envío Términos:
Cantidad de orden mínima: 1
Detalles de empaquetado: Bolso antiestático, bolso de burbuja, caja de la espuma y caja del cartón.
Tiempo de entrega: 1-3 días laborables
Condiciones de pago: Western Union, T/T, MoneyGram, T/T
Capacidad de la fuente: 500pcs/day

Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original

descripción
Tipo de panel: Uno-Si TFT LCD Tamaño del panel: 10.1 pulgadas
Resolución: 1024×600 esquema: 235×143×5.2 milímetro
Relación de contraste: 500:1 (tipo.) De tensión de entrada: 3.3V (tipo.)
Alta luz:

industrial touch screen display

,

industrial lcd panel

Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original



N101L6-L0B Basic Information

Panel Model N101L6-L0B
Panel Brand CMO
Descrition a-Si TFT-LCD ,10.1 inch, 1024×600
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



N101L6-L0B Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 117 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0725×0.2088 mm (H×V)
Pixel Pitch 0.2175×0.2088 mm (H×V)
Weight 180/190g (Typ./Max.)
Surface Glare (Haze 0%), Hard coating (3H)
Active Area 222.72×125.28 mm (H×V)
Bezel Area 226.34×128.1 mm (H×V)
Outline Dimension 235×143 mm (H×V)
Outline Depth 4.9/5.2 (Typ./Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (4-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.

Return and Refund:
(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.
(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.
(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
M215HJJ-P02 Innolux 21.5" 1920×1080
M200HJJ-P01 Innolux 19.5" 1920×1080
HSD050FHW3-D00-T00 HannStar 5.0" 720×1280
S57001A112G56C1T5 Laibao 5.7" 480×320
TPF0501008P JDI 5.0" 720×1280
TL050JYXP02-00 Tianma 5.0" 720×1280
N156BGE-PA1 Innolux 15.6" 1366×768
T430HVN01.0 CELL AUO 43" 1920×1080
T320HVN05.6 CELL AUO 31.5" 1920×1080

Pls contact to us for more stock information: salespm@nselectronic.com.hk
