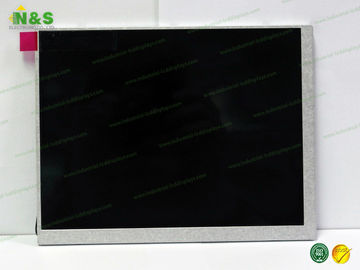

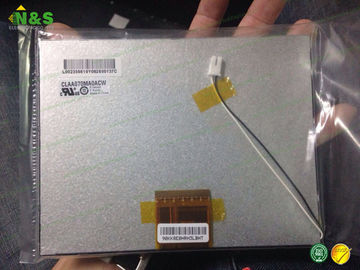

CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)

CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)
CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td) CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)

Ampliación de imagen :  CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)

Datos del producto:
Lugar de origen: Corea
Nombre de la marca: CPT
Certificación: ISO9001
Número de modelo: CLAA070MA0ACW
Pago y Envío Términos:
Cantidad de orden mínima: 1
Detalles de empaquetado: Bolso antiestático, bolso de burbuja, caja de la espuma y caja del cartón.
Tiempo de entrega: 1-3 días laborables
Condiciones de pago: Western Union, T/T, MoneyGram, T/T
Capacidad de la fuente: 500pcs/day

CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)

descripción
Tipo de panel: Uno-Si TFT LCD Tamaño del panel: 7,0 pulgadas
Resolución: 800×600 Relación de contraste: 500:1 (tipo.)
Área activa: 141.6×106.2 milímetro Tiempo de respuesta: 20 (tipo.) (Tr+Td)
Alta luz:

industrial lcd screen

,

industrial lcd panel

CLAA070MA0ACW TFT LCD Module CPT 7.0 inch Surface Antiglare, Hard coating (3H) Response Time 20 (Typ.)(Tr+Td)



N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.

6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.

7) Feel free to contact to us if there is any problems during the shipment process.



Return and Refund:

(1) Please notify us ASAP if the LCD Displays you received is defective. Please do not raise any dispute without communication.

(2) All LCD panels must be informed before returning. Defective item must be reported and returned within our warranty period.

(3) Returned item must have original package and be in good condition if possible, pls provide us the tracking number and returning reason.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAF045LA31 AX CPT 4.5" 480×854
CLAF022GH21A0 CPT 2.2" 240×320
CLAF024G421 AX CPT 2.4" 240×320
CLAF022GJ01 AX CPT 2.2" 240×320
CLAF050JD01 00XC CPT 5.0" 480×272
CLAF050JD01CX CPT 5.0" 480×272
CLAF024G201C0 CPT 2.4" 480×234
CLAF024G421 AX CPT 2.4" 240×320
CLAF022GJ01 AX CPT 2.2" 240×320
CLAF050JD01 00XC CPT 5.0" 480×272

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk



CLAA070MA0ACW Basic Information

Panel Model CLAA070MA0ACW
Panel Brand CPT
Descrition a-Si TFT-LCD ,7.0 inch, 800×600
Panel Type a-Si TFT-LCD
Operating Temperature -20 ~ 70 °C
Storage Temperature -30 ~ 80 °C
Vibration Resistance 2.9G (28.4 m/s²)
Remarks DE/SYNC mode selectable



CLAA070MA0ACW Mechanical Features

Dot Resolution 800(RGB)×600 (SVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 143 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.059×0.177 mm (H×V)
Pixel Pitch 0.177×0.177 mm (H×V)
Weight 165g (Typ.)
Surface Antiglare, Hard coating (3H)
Active Area 141.6×106.2 mm (H×V)
Bezel Area 144.9×109.4 mm (H×V)
Outline Dimension 154×119.2 mm (H×V)
Outline Depth 5.1±0.3 mm
Holes & Brackets Without
Landscape or Portrait Landscape type
Touch Panel Without



CLAA070MA0ACW Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 250 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K/16.2M (6-bit / 6-bit + FRC)
Response Time 20 (Typ.)(Tr+Td)
Viewing Angle 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.33/1.43 (Typ./Max.)(9 points)
Sunlight Readable N
