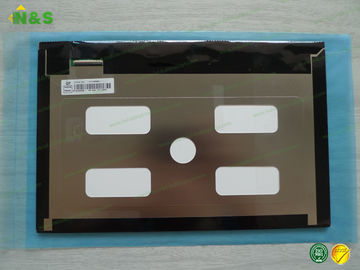

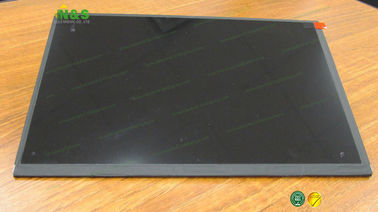

Normally Black EJ101IA-01G TFT LCD Module INNOLUX 10.1 inch for Industrial Application panel Surface Hard coating
FAQ
Q1: Can I place sample order first?
A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.
Q2: How could I pay them?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: How to place the order?
A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.
Q4: How long can I get my order?
A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.
Q5: How to send us the products?
A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.
Our Services
Payment:
(1) Bank transfer , Western Union , T/T, Paypal are accepted.
(2) If any problem of payment, you can contact with us.
Shipment:
(1) Worldwide shipping. Any delivery way you want to choose, please contact us.
(2) All our LCD display will be shipped within1-3 days after confirmed full payment. Please inform us the price you want to mark on the invoice for the LCD screens.
(3) Please make sure your address is correct and deliverable by Express you choose. Your full name is recommended, especially Russian buyers.
(4) Delivery time is approximate:
------Via DHL, Fedex, UPS: 3-7working days
------Via EMS:7-15 working days
------Via Direct Express Line:1-3 working days.
Here comes our other LCD panels stock for your easy reference:
| Panel Model |
Brand |
Size |
Resolution |
| M220ZGE-P02 |
Innolux |
22.0" |
1680×1050 |
| V420HJ2-P01 |
Innolux |
42" |
1920×1080 |
| F05501-01Z |
Innolux |
5.5" |
720×1280 |
| EE101IA-01D |
Innolux |
10.1" |
1280×800 |
| HE070IA-02E |
Innolux |
7.0" |
1280×800 |
| HE101NA-02C |
Innolux |
10.1" |
1280×800 |
| ZE090NA-01B |
Innolux |
9.0" |
1280×800 |
| HE080NA-04I |
Innolux |
8.0" |
1024×768 |
| HE070NA-13C |
Innolux |
7.0" |
1024×600 |
| HE070NA-13B |
Innolux |
7.0" |
1024×600 |
| HE080IA-01D |
Innolux |
8.0" |
1024×768 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
EJ101IA-01G Basic Information
| Panel Model |
EJ101IA-01G |
| Panel Brand |
CHIMEI INNOLUX |
| Descrition |
a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type |
a-Si TFT-LCD |
| Operating Temperature |
-10 ~ 50 °C |
| Storage Temperature |
-20 ~ 60 °C |
EJ101IA-01G Mechanical Features
| Dot Resolution |
1280(RGB)×800 (WXGA) |
| Pixel Configuration |
RGB Vertical Stripe |
| Pixel Density |
149 PPI |
| Aspect Ratio |
16:10 (H:V) |
| Form Factor |
Flat Rectangle Display |
| Dot Pitch |
0.0565×0.1695 mm (H×V) |
| Pixel Pitch |
0.1695×0.1695 mm (H×V) |
| Weight |
183g (Typ.) |
| Surface |
Hard coating |
| Active Area |
216.96×135.6 mm (H×V) |
| Outline Dimension |
229.46×149.1 mm (H×V) |
| Outline Depth |
2.5/4.31 (Typ./Max.) mm |
| Holes & Brackets |
Without |
| Landscape or Portrait |
Landscape type |
| Touch Panel |
Without |
EJ101IA-01G Optical Features
| Display Mode |
IPS, Normally Black, Transmissive |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
800 : 1 (Typ.) (Transmissive) |
| Display Color |
16.7M (6-bit + Hi-FRC) |
| Color Gamut |
50% NTSC (CIE1931) |
| Response Time |
10/15 (Typ.)(Tr/Td) |
| Viewing Angle |
85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction |
Symmetry |
| White color Chromaticity |
Wx:0.310; Wy:0.330 |
| White Variation |
1.25/1.33 (Typ./Max.)(13 points) |
| Sunlight Readable |
N |
